Billet Turbine Compressor Wheel High Durability Corrosion Resistant

Billet Turbine Compressor Wheel Fast Delivery High Durability Corrosion Resistant

Why Choose Us?

1. Gold Supplier → Reliable Supplier with Good Reputation

2. Factory Direct Sale → Competitive Price & Full Stock

3. Quality Control → High Quality

4. Low MOQ → Accept 1 pc

5. Accept OEM → Produce Products as Customers' Requirements

6. Fast Delivery → Delivery within 3 Working Days

7. Various Payment Methods → T/T or WESTERN UNION L/C

8. Changing or Refunding → Accept Returns

Turbocharger design features:

Turbo compressor impeller (also called compressor wheel) belongs to one part of turbocharger with the design features as below:

• Supercharger is a axial-flow turbocharger.

• Turbochargers adopts inboard plain bearing, uncooled casings and lubricated by the engine's lube oil system.

• For engine power output range from 1,650 to 24,500 kW per turbocharger;

• Axial flow turbine inboard plain bearing design;

• Lubricated by the engines lube oil system;

• Suitable for a wide variety of fuels, heavy fuel, diesel oil, biofuel and gas operation;

• Simple and durable design;

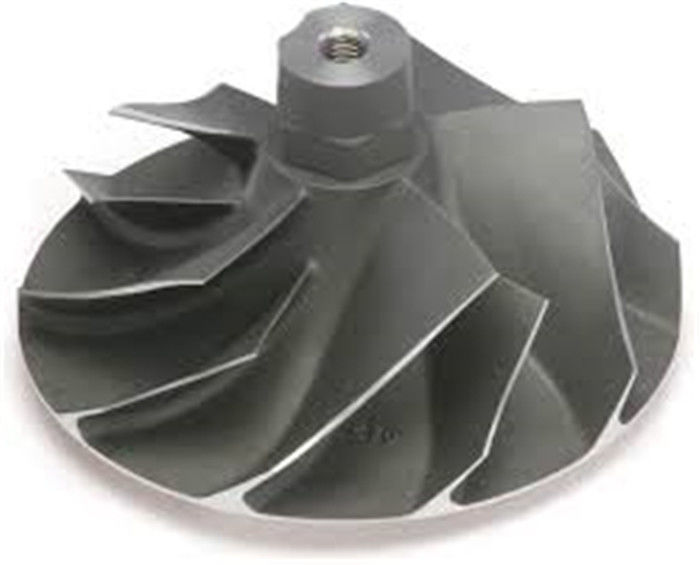

The description of turbo compressor impeller:

The turbo compressor impeller (compressor wheel) is of aluminium alloy or the more expensive titanium. Manufactured from a single casting, it is located on the rotor shaft by splines.

Aluminium impellers have a limited life, due to creep, which is dictated by the final air temperature. Often the temperature of air leaving the impeller can be as high as 200°C.

The life of the impeller under these circumstances may be limited to about 70000 hours. To extend the life, air temperatures must be reduced. One way of achieving this is to draw the air from outside where the ambient air temperature is below that of the engine room.

Efficient filtration and separation to remove water droplets is essential and the impeller will have to be coated to prevent corrosion accelerated by the possible presence of salt water.
